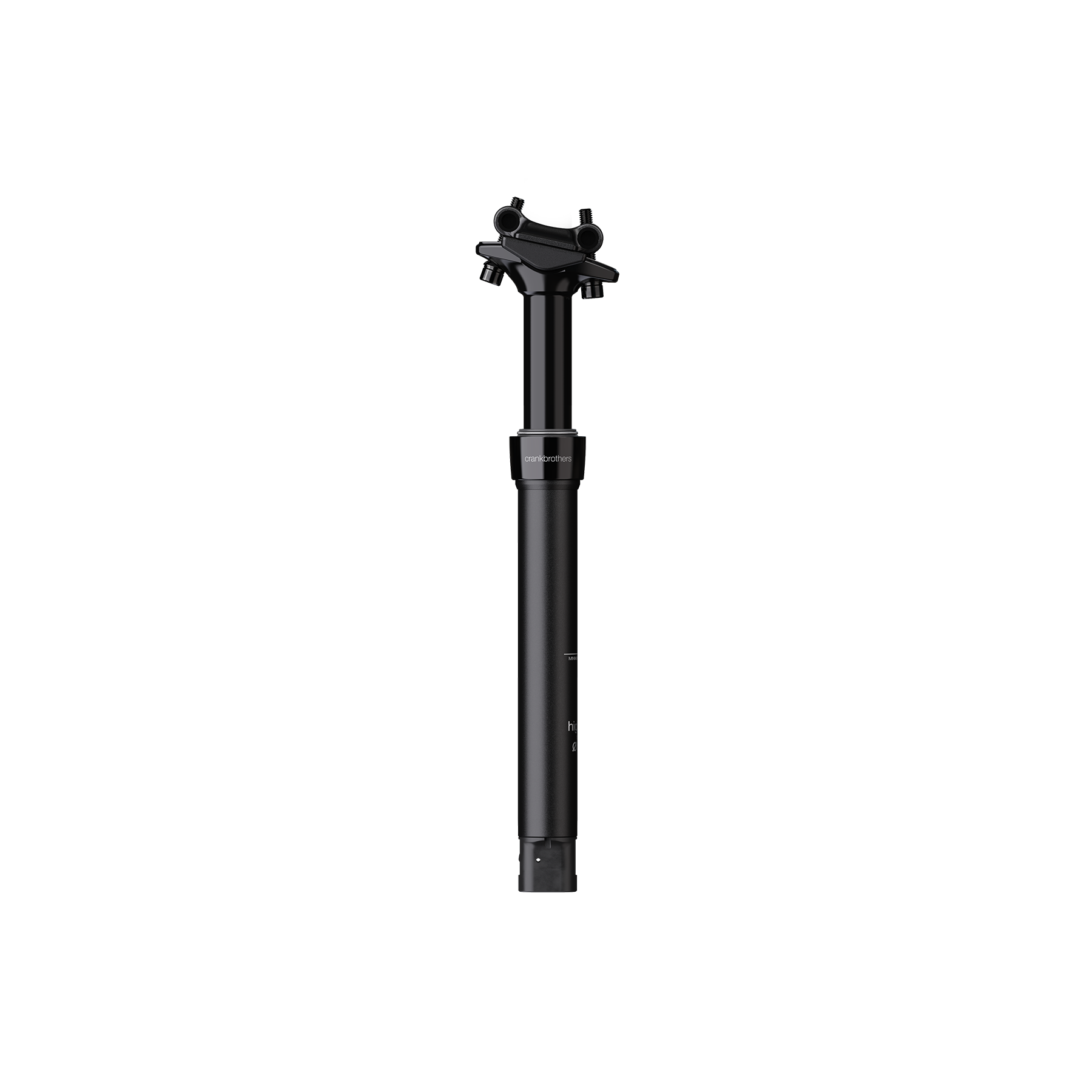

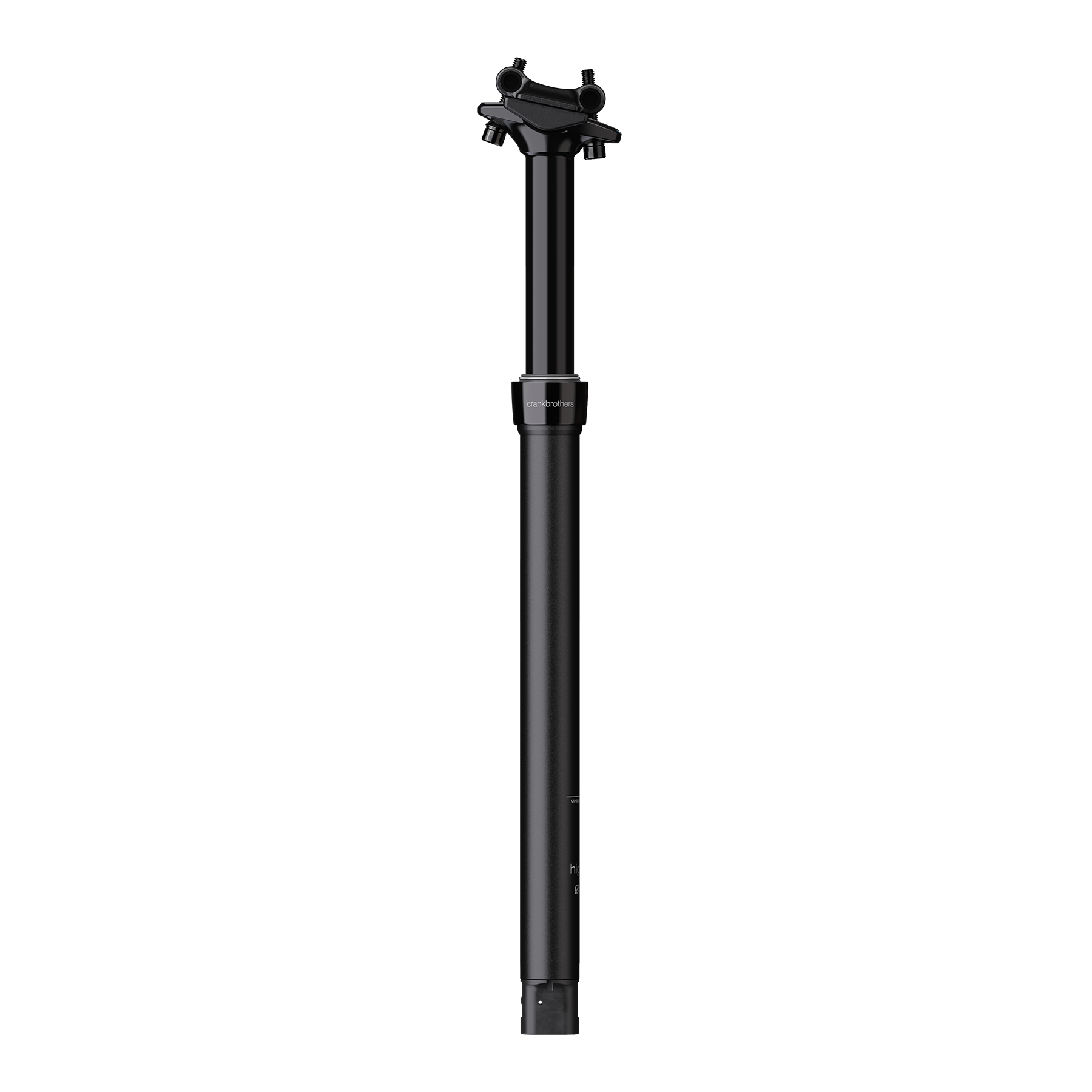

SKU: 17151

The new Highline dropper post brings together the best features from our lineup into one refined and streamlined design. A lower stack height improves fit and frame clearance, while the easy-install quick-release head makes setup faster and simpler. Available in travel options from 60mm to 125mm, the Highline 27.2 also features a self-contained IFP hydraulic cartridge and durable construction, backed by a 5-year warranty, for long-lasting reliability on every ride.

  • 27.2mm seatpost diameter to fit most XC and gravel bikes
  • 2-bolt quick-connect head
  • Self-contained IFP hydraulic cartridge
  • Internal routing
  • Quick-connect mechanism for ease of cable installation
  • Linear actuator for quick return speed
  • 45mm minimum stack height
  • Remote sold separately

gravel

xc

€249,99
/
inkl. MwSt.
Diameter
34.9
31.6
30.9
27.2
Length
Finden Sie einen Händler

Dimensions and Weight 5 years

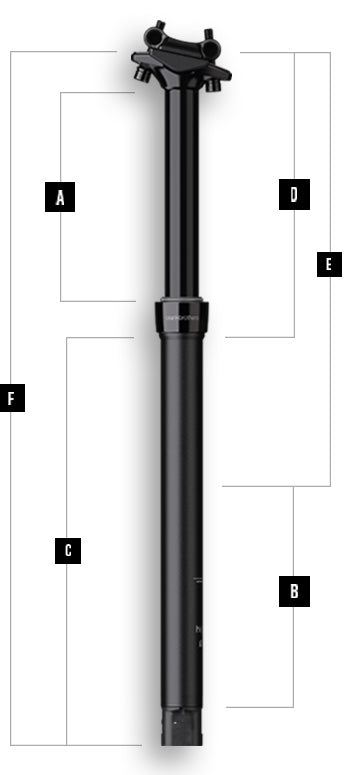

Highline 27.2 Size Guide

ATravel:60mm60mm80mm80mm100mm100mm125mm
BMin. Insertion Length:100mm100mm100mm100mm100mm100mm100mm
CMax. Insertion Length:174mm264mm194mm264mm214mm264mm264mm
DMin. Extended Length:121mm121mm141mm141mm161mm161mm186mm
EMax. Extended Length:170mm260mm210mm280mm250mm300mm325mm
FTotal Post Length:295mm385mm335mm405mm375mm425mm450mm
GMin. Stack Height:47mm47mm47mm47mm47mm47mm47mm
HSetback:0mm0mm0mm0mm0mm0mm0mm
JWeight:376g462g403g469g429g475g483g

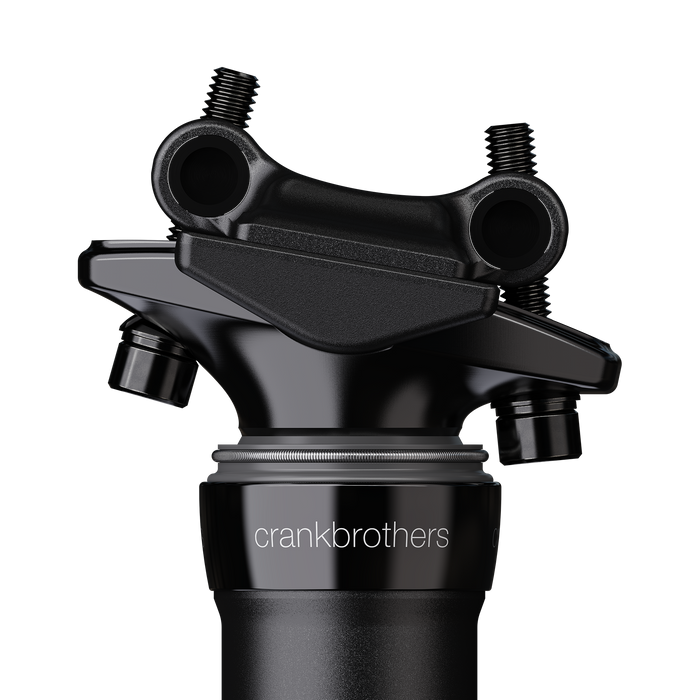

Low stack height

Low stack height

The distance between the seatpost collar and the seat rails is minimized, allowing riders with shorter legs or bikes with longer seat tubes to run longer-travel droppers. This adjustment means the saddle sits lower when fully compressed, providing more comfort and freedom of movement on the trail

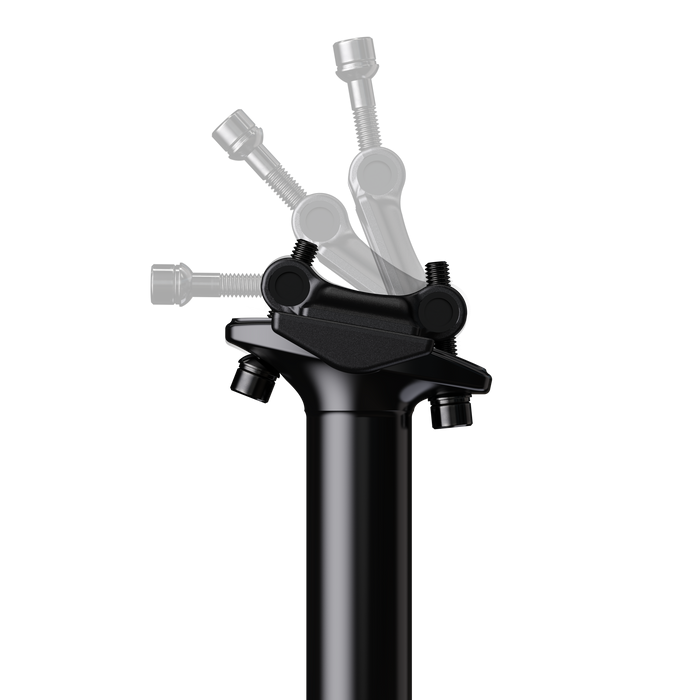

Head

Head

The Highline’s two-bolt saddle clamp includes a quick-release rear bolt, allowing for easy installation and quick saddle adjustments. It has a 45 mm stack height measured from the collar base to the rail center when fully dropped.
